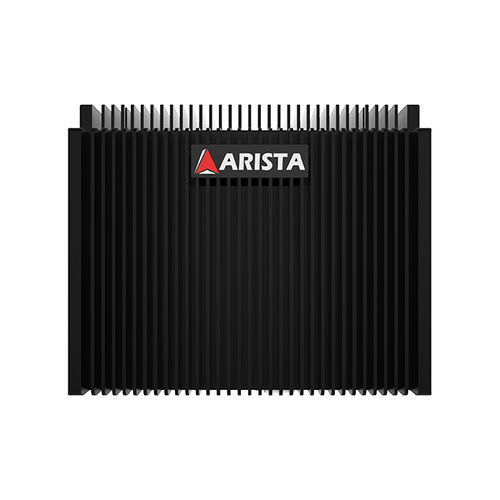

Box computer BoxPC-238-H01

Intel® Core™ i7-6700THDMIDVI

Intel i7-6700T Processor Up to 32GB DDR3 DIMM Memory Optional Dual Swappable HDD Dual Gigabit LAN 2 x PCIe x8 Fanless Wall Mount System CPU - Intel i7-6700T Processor Chipset - Intel Q170 Memory - Up to 32GB DDR4 Video Controller - Intel® Gen9 Intel® Graphics Video Interface - DVI, HDMI, Display Port *Support Triple displays Storage Option - Up to 2 x 2.5" SATA SSD Compact Flash - N/A Keyboard/Mouse - 1 x PS / 2 connector Audio - Line In, Line Out, Mic In Watchdog Timer - Programmable 1~255 sec Remote Boot - N/A Expansion Slot - 2 x PCIe x8 I/O Communication USB Port - 4 x USB 2.0, 2 x USB 3.0 Serial Port - 2 x RS-232/422/485 IEEE 1394 - N/A LAN - 2 x Gigabit Parallel - N/A GPIO - N/A Smart Battery External Smart Battery - Optional OS Support OS Support - Win 7, Win1O Power / Thermal Specs Power Requirement (Max) - 24VDC / 3A Power Consumption (Max) - 73 W Recommended Power Supply - 103 W Heat Dissipation - 246 BTU/hr Physical Information Mounting - Wall Mount Net Weight - 10 Lbs / 4.53 Kg Dimension (W x H x D) - 11.56 x 6.24 x 8.59 inch 293.6 x 158.6 x 218.3 mm Recommended Cutout Dimension (WxH) - N/A Environmental Operating Temperature - 0~50ºC (32~122ºF) Storage Temperature - -20~60ºC (-4~140ºF) Relative Humidity - 0~95% IP/NEMA Rating - Meets IP50 Certification - UL 61010
