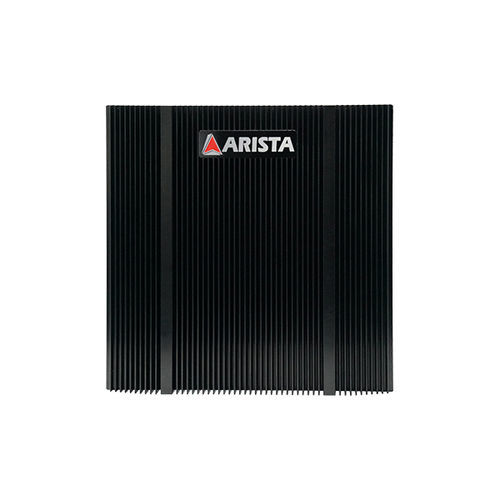

Box computer BoxPC-402-H00

6th generation Intel® Core™RS-232DVI

Intel 6th Gen Core-i7 Up to 32GB DDR4 DIMM Memory Dual Gigabit LAN 2 x SATA3 (6.0Gb/s), Supports RAID-1 1x PCIe x16 or 1 x PCIe x4, 2x PCI slots Fanless & Expandable System CPU - Intel 6th Gen i7 Chipset - Intel H110 Memory - Up to 32GB DDR4 Video Controller - Intel® Gen9 Graphics DX 11/12, OGL4.3/4.4 Video Interface - DVI, HDMI Storage Option - 2 x SATA3 (6.0Gb/s), Supports RAID-1 Compact Flash - N/A Keyboard/Mouse - 1xPS/2 connectors Audio - Line in, Line Out, Mic-In Watchdog Timer - Programmable 1~255 sec Remote Boot - PXE Expansion Slot - 1x PCIe x16 or 1 x PCIe x4, 2x PCI slots I/O Communication USB Port - 4 x USB 2.0 Serial Port - 1 x RS-232/422/485 IEEE 1394 - N/A LAN - Dual Gigabit LAN Parallel - N/A GPIO - N/A Smart Battery External Smart Battery - Optional OS Support OS Support - Windows 10 Power / Thermal Specs Power Requirement (Max) - 24VDC / 3A Power Consumption (Max) - 73 W Recommended Power Supply - 103 W Heat Dissipation - 246 BTU/Hr Physical Information Mounting - Wall Mount Net Weight - 10 Lbs / 4.53 Kg Dimension (W x H x D) - 11.56 x 4.26 x 8.59 inch 293.6 x 108.3 x 218.3 mm Recommended Cutout Dimension (WxH) - N/A Environmental Operating Temperature - 0~50°C (32~122°F) Storage Temperature - -20~60°C (-4~140°F) Relative Humidity - 0% to 95% IP/NEMA Rating - Meets IP50 Certification - N/A
