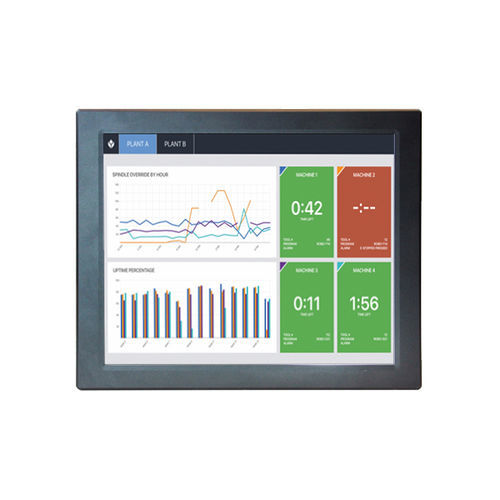

LCD monitor ADM-1812AP-VHB

5-wire resistive touch screentouch12.1"

1000 nits Very High Bright Sunlight Readable 5-Wire Resistive Touch Screen or Tempered Glass Powder Coated Aluminum or Stainless Steel Bezel Bezel meets IP65 / NEMA 4X requirements RS-232, USB Touch Interface VGA, DVI Input AC 100~240VAC to 12VDC Power Adaptor option 24VDC Operating Voltage option Backlight Lifetime - 50,000 hours Visual Characteristics Colors - 16.2 million Aspect Ratio - 4:3 Viewing Angle (V/H) - 140° / 160° Response Time - 25 ms Pixel Pitch (mm) - 0.3075 x 0.3075 Contrast Ratio - 700:1 Brightness - 1000 nits Input Interface VGA - Yes DVI - Yes HDMI - N/A Display Port - N/A CVBS - N/A YPbPr - N/A Touchscreen Technology - 5-Wire Resistive Touch Rating - 35 million Touches MTBF - 490,000 Hours Interface - RS-232, USB Driver - Win XP pro, Win XPe, Win 7 & up & up Front Bezel NEMA 4 - Black Powder Coated NEMA 4X - Stainless Steel (Optional) Power/Thermal Specs. Power Requirement (Max) - 12VDC / 0.47A Power Consumption (Max) - 6 W Recommended Power Supply - 8 W Heat Dissipation - 20 BTU/hr Physical Information Mounting - Panel Mount Dimension (W x H x D) - 12.60 x 10.03 x 2.06 inch 320.0 x 254.8 x 52.4 mm Recommended Cutout Dimension (WxH) - 11.96 x 9.38 inch 303.8 x 238.3 mm Net Weight - 8.8 lbs / 4 kg Environmental Operating Temp - 0~50°C (32~122°F), * VHB Version 0~35°C (32~95°F) Storage Temp - -20~60°C (-4~140°F) Humidity - 5% to 95% (non-condensing) Rating - Bezel Meets NEMA 4 / NEMA 4X requirements Certification - CE, UL 508
