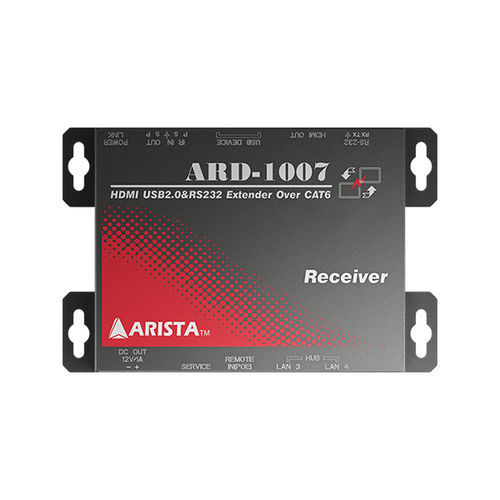

Video decoder ARD-1007-A00-RX

EthernetHDMIUSB

True one cable 330 feet extension solution Decodes HDMI, USB, 10/100 LAN, RS-232, IR signals Powered by Transmitter, does not require external power supply Provides 12VDC/1A power source Technical - 　 Role of Usage - Decoder / Receiver (RX) Video Resolution - Up to 3840 x 2160 Extension Media - Cat5e/Cat6 cable up to 330 feet Decoding Signals - HDMI, USB, RS-232, IR, 10/100 Ethernet, Power I/O Communication - 　 Input - 1 x RJ45 Remote IN (From PSE) HDMI Out - HDMI female RS-232 - Terminal Block 3 Pin (Tx, Rx, GND) USB - 4x USB Type A Ethernet Hub - 2 x 10/100 LAN IR - Terminal Block 5-pin 12V DC Output Terminal - 12V / 1A Output Physical Information - 　 Mounting - Wall mount or DIN-RAIL mount Dimension (W x H x D) - 6.19 x 1.45 x 4.04 inch 157.2 x 36.8 x 102.6 mm Power/Thermal Specs - 　 Power supply - Powered by Transmitter over CAT 5e/6 cable Environmental - 　 Operation Temperature - 0~50°C (32~122°F)) Storage Temperature - -20~60°C (-4~140°F) Relative Humidity - 0~95%
