Projected Capacitive Touch Screen
Aluminum or Stainless-Steel Bezel
Bezel meets IP66 / NEMA 4X requirements
Built-in a 2-port USB 2.0 hub to support multiple USB devices
Built-in a 2-port 100BaseT Ethernet pass-through hub
Single CAT6 cable connection to KVM Transmitter
No Power Supply is required

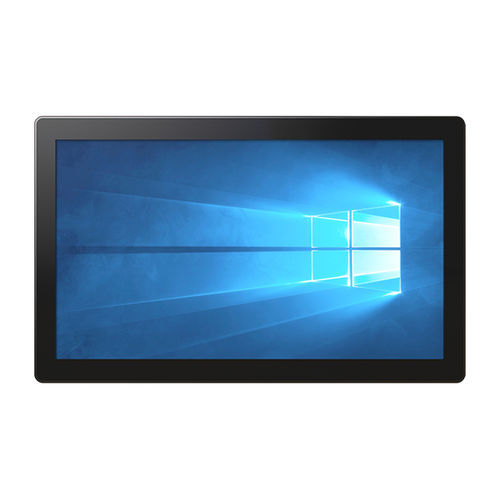

LCD Display
Display Size - 21.5 inch
Max Resolution - 1920 x 1080
Backlight Lifetime - 50,000 hours
Visual Characteristics
Colors - 16.7 million
Aspect Ratio - 16:9
Viewing Angle (V/H) - 178° / 178°
Contrast Ratio - 1000:1
Brightness (max) - 250 nits
Video Input - HDMI via Transmitter
Touchscreen
Technology - Projected Capacitive
Touch Interface - USB via Transmitter
Driver - Windows 7, Windows 10
I/O
USB Device Ports - 2x
Network Pass Through - 2x
Power/Thermal Specs.
Power Requirement (Max) - Powered by Transmitter
Power Consumption (Max) - 21 W
Recommended Power Supply - Not Required
Heat Dissipation - 70 BTU/hr
Physical Information
Mounting - Panel Mount
Net Weight - --
Dimension (WxHxD) - 20.91 x 12.94 x 2.01 inch
531.0 x 328.8 x 50.95 mm
Recommended Cutout Dimension (WxH) - 20.09 x 12.13 inch
510.2 x 308.0 mm
Environmental -
Operating Temp - 0 to 50°C (32 to 122°F)
Storage Temp - -20° to 60°C (-4° to 140°F)
Humidity - 0~95%
