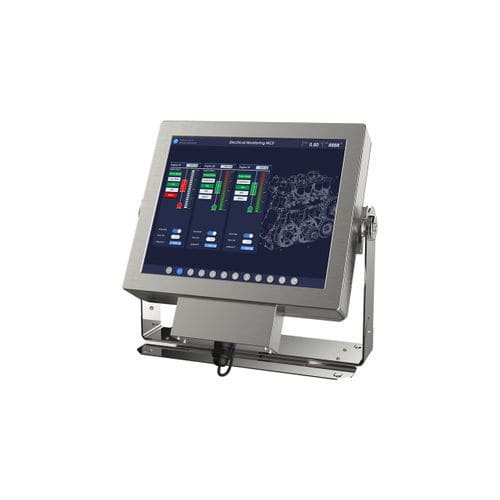

LCD panel PC ARP-5519AX
5-wire resistive touch screen19"1280 x 1024

LCD panel PC - ARP-5519AX - Arista - 5-wire resistive touch screen / 19" / 1280 x 1024
LCD panel PC - ARP-5519AX - Arista - 5-wire resistive touch screen / 19" / 1280 x 1024
LCD panel PC - ARP-5519AX - Arista - 5-wire resistive touch screen / 19" / 1280 x 1024 - image - 2
LCD panel PC - ARP-5519AX - Arista - 5-wire resistive touch screen / 19" / 1280 x 1024 - image - 3
LCD panel PC - ARP-5519AX - Arista - 5-wire resistive touch screen / 19" / 1280 x 1024 - image - 4
Add to favorites
Compare this product


Characteristics

Screen type
LCD, 5-wire resistive touch screen
Display size
19"
Resolution
1280 x 1024
Processor
Intel® Celeron J1900, Intel® Celeron J1900, Intel® Atom E3845, Intel® Core™ i7-6600U
Operating system
Windows 10, Windows 7
Construction
compact, stainless steel frames
Applications
industrial
Protection level
waterproof, NEMA 4

Description

5-Wire Resistive Touch Stainless Steel Enclosure Meets NEMA 4X requirements Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU; Intel i7-6600U CPU Up to 8GB DDR3/ Up to 16GB DDR4 SO-DIMM 1x Gigabit Ethernet 2x USB 2.0 ports Optional 2.5" SSD 24VDC Operating Voltage UL Class 1 Division 2 Explosion Proof Certification for Hazardous Locations Backlight Lifetime - 50,000 - 50,000 Visual Characteristics -   Colors - 16.7 million - 16.7 million Aspect Ratio - 5:4 - 5:4 Viewing Angle (V/H) - 160° / 170° - 160° / 170° Response time (Typical) - 30 ms - 30 ms Pixel Pitch (mm) - 0.294 x 0.294 - 0.294 x 0.294 Contrast Ratio - 1000 : 1 - 1000 : 1 Brightness - 450 nits (max) - 450 nits (max) Touchscreen -   Technology - 5 Wire Resistive - 5 Wire Resistive Interface - USB - USB Driver - Windows 7 & Windows 10 - Windows 7 & Windows 10 Enclosure -   NEMA 4 - N/A - N/A NEMA 4x - Stainless Steel - Stainless Steel System -   CPU - Intel Celeron J1900 @ 1.99GHz / Atom E3845 @ 1.91GHz CPU - Intel i7-6600U Chipset - Bay Trail - By CPU Memory - Up to 8GB DDR3L SO-DIMM - Up to 16GB DDR4 SO-DIMM Video Controller - Intel Gen7 Intel Graphics DX 11, OGL3.2 - Intel HD Graphics 520 External Video Output - N/A - N/A Storage Option - Optional 2.5" SSD - Optional 2.5" SSD Compact Flash - N/A - N/A Keyboard / Mouse - USB - USB Audio - N/A - N/A Watchdog Timer - Programmable 1 - 255 sec - Programmable 1 - 255 sec Remote Boot - ThinManager Ready, PXE - N/A Expansion Slot - N/A - N/A I/O Communication -   USB Port - 2 x USB 2.0 - 2 x USB 2.0 Serial Port - N/A - N/A IEEE 1394 - N/A - N/A LAN - 1 x Gigabit - 1 x Gigabit Parallel - N/A - N/A GPIO - N/A - N/A Smart Battery -   External Smart Battery - N/A - N/A OS Support
