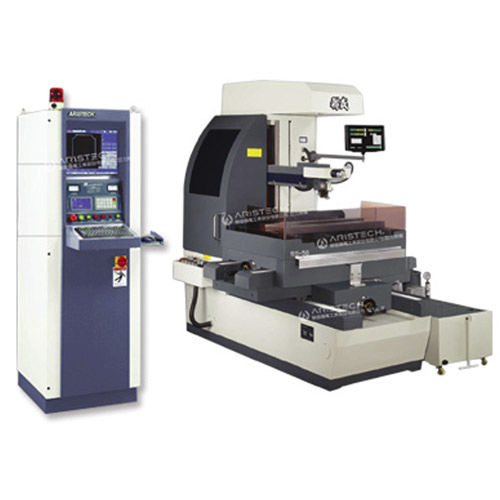

Wire electrical discharge machine DW series

CNC

THE FIRST SET FAST WIRE CUTTING EDM MADE IN TAIWAN.IT IS SUITABLE SUPER-HARD ALLOY,SAMPLE. COMPLICATED SHAPE MOLD & PRECISION DIE. ESPECIAL FOR ECONOMIZE POWER & MATERIALS. X.Y AXES ADOPT REPCISION CLASS BALLSCREW & LINEAR GUIDES AND LINEAR SCALES(OPTIONAL) FEED BACK STEPPING MOTORS (OR AC SERVO MOTORS) SYSTEM FOR THE TABLE MOVEMENT & ACCURACYPOSITIONING. EQUIPPED AUTOMATIC WIRE TIGHTEN ROLLER DEVICE FOR GOOD PERFORMANCE WHEN WIRE CUTTING, AND MULTIPLE FLUSHING NOZZLERS FOR GOOD DIELECTRIC FLUID CIRCULATION. THE HIGHLY RIGID, FINE-GRAINED CAST IRON MACHINE BASE. COLUMN, TABLE AND MEEHANITE CAST IRON COMPONENTS PROVIDE FOR STABILITY & LONG SERVICE LIFE. USING INDUSTIRIAL PC. PROGRAMMING & EDIT. THE ON-LINE EDIT. NO CODE EDIT, 3B CODE EDIT, (CAM GRAPHIC TRANSFER) EASY TO UNDERSTAND & OPERATION. CNC FUNCTION﹕ 1.Automatic positioning 2.Program editing (a) On-line edit (simple CAD) (b) N.C. code edit (G.M code) (c) 3B code edit (d) DXF edit (CAM, graphic transfer file) 3.Forward or reverse orbital function 4.Automatic or block stop machining 5.Mirror image function 6.Coordinate rotation function 7. Dry run function 8. Battery backup for memory 9. (MDI) manual data input 10. Start point or hold point return 11. Short-circuit interrupt protection & Auto. Stop 12. Edming gap compensation 13. Wire diameter compensation 14. Cutting path compensation 15. Cutting path display Circuit system - Power MOS transistor Max. output current -10A Voltage select - Automatic Switching. IP select - 1-10 steps Off time select - Automatic Switching. Data Input - - USB, RS-232C Internet Positioning Display - 15" LCD TFT Cutting Data Display - 5" LCD TFT Graphic function - - 2D/3D display
