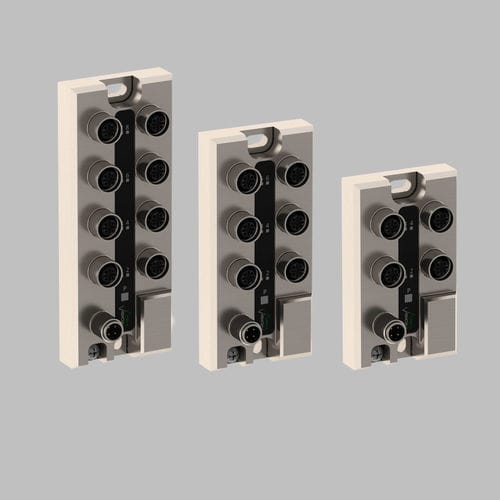

Unmanaged switch ArkSwitch TX FE

8 ports4 ports6 ports

The ultra compact Unmanaged Ethernet switches ArkSwitch TX FE reliably connects all applications in harsh industrial environments, as well as in rail and commercial vehicles. The robust aluminium housing meets the high protection rating of IP65/IP67 and can be installed directly in the field in a temperature range of -40-70 ° C, which saves cabling and space in the control cabinet. The switch offers Fast Ethernet M12 ports with a data rate of 10/100 Mbit/s. Thanks to the high insulation resistance of 2.25 kVDC, excellent EMC performance according to DIN EN 50121-3-2 and fire protection according to DIN EN 45545, the ArkSwitch Ethernet Switch is suitable for railway applications and complies with DIN EN 50155. The Ethernet switch integrates seamlessly and transparently into any industrial and mobile network including PROFINET applications. Key facts: Up to 8x Connections Ethernet (TX) Application areas mobile and stationary Power supply 9-36V DC (M12-A coded) Extended temperature range from -40°C to +70°C Compact robust design Protection class according to IP65/67
