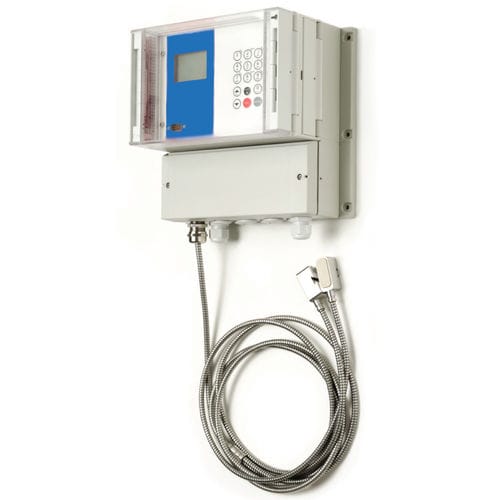

Ultrasonic flowmeter USCX150

for liquidsRS485PROFIBUS PA

The USCX150 is premiere product for flexibility and performance, providing the user with a comprehensive specification and a list of configuration options. The practical modular design and the wide variety of different transducer types available ensure this instrument is suitable from simple water flow measurement to energy flow monitoring. Specification • Pipe diameter range 10 mm to 6,500 mm • Temperature range for sensors -30 °C to +250 °C (-22 °F to +482 °F), higher temperatures available on request • Lockable and sturdy IP 66 polycarbonate flowmeter enclosure • Selectable three-line LCD display and full keypad • Up to ten input or output slots available • Measurement of two flows simultaneously Features • Dual flow monitoring with sum, average, difference and maximum calculations • Process output options including current, open-collector, relay • Communication options RS 485, Modbus RTU, Profibus PA and HART* compatible output • Current inputs for temperature, pressure and density compensation • Large data logger and software for sampling and data transfer • Optional heat quantity (thermal energy) measurement functionality Applications • Heating, Ventilation and Air Conditioning (HVAC) measurements • Large pipe measurement with two sensor pairs in ‘X’ configuration • Product recognition and interface detection systems • ATEX measurements with Ex-certified transducers • Effluent and wastewater measurements • Automated process control
