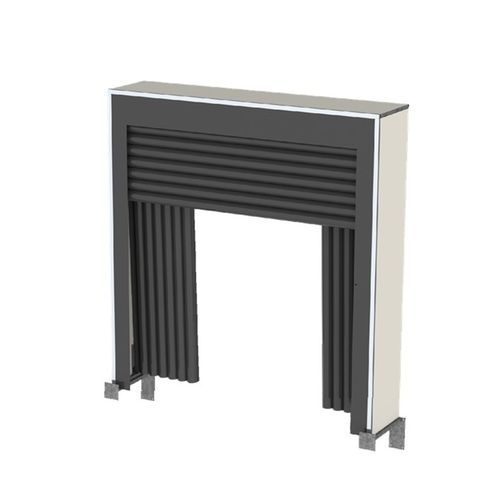

The inflatable dock shelter is the most suitable solution for a loading/unloading lifting table marked by wide variations between intern and extern temperatures. For instance, low and extremely low temperatures in cold storages. Easy to use, the inflatable dock shelter is triggered by a single button and can be used with temperatures oscillating between -35˚ up to + 80˚ C.
Armo inflatable dock shelters are:
available in 2 versions: with fastening cushions on the outer sides or cantilevered
made with efficient and durable materials
realized in observance of CE legislation
Technical features
Dimensions
Lenght and height: 3.500 x 3.700 mm; projection: 0/800 mm; top height: 400 mm; assembly height: 4.700
Protections width on the sides
250 mm
Cushion
Material: 670 cushions gr/m2; width (inflated): 600 mm; height (inflated): 1.100 mm
Protection class
IP 65
Standard color
230 Volt
Fuelling
Black
Cushions are made of trevira polyester fabric with opaque PVC cladding on both sides. Protection stripes, made of 3500 gr /2m double layer polyester, are flexible in length and stable in width. Use-resistant on the both sides, hard, is antistatic applied, opaque PVC cladding.
