Condensate drain ICS series

automaticthermostatichigh-capacity

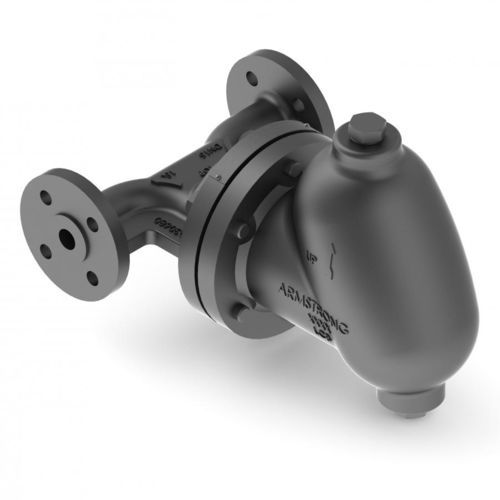

Armstrong ICS Series Float & Thermostatic steam traps are for industrial service from 0 to 465 psig (32 bar). The simple yet rugged construction of the ICS series carbon steel float and thermostatic trap is designed to assure long, trouble-free service. The ICS Float and Thermostatic steam trap is used for continuous drainage of condensate and high-capacity venting of air and CO2, when steam pressure may vary from maximum steam supply pressure to vacuum. Armstrong ICS Float & Thermostatic steam traps are available with flanged connections of 150RF, 300RF & PN40RF, socket weld and screwed connections in 1/2’’, 3/4’’, 1’’, 1-1/2’’ and 2’’ sizes for the maximum operating pressure range of 75 psig (5 barg) to 465 psig (32 barg).
