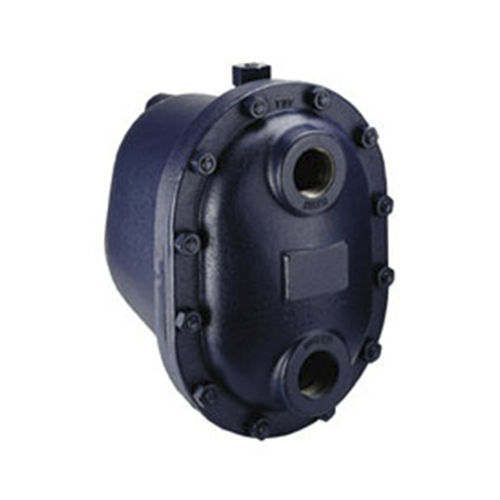

Condensate drain LS, MS series

automaticthermostatichigh-capacity

The simple, yet rugged, cast steel construction of the LS & MS Series Ultra-Capacity Float & Thermostatic steam traps offer long, trouble-free service. All floats, valves and seats, and lever mechanisms are constructed of stainless steel. The integral thermostatic air vent is a balanced-pressure phosphor-bronze bellows caged in stainless steel. It is designed especially for demanding industrial applications where highly efficient, uninterrupted service is essential. This balanced-pressure type of air vent will respond to the pressure-temperature curve of steam at any pressure from zero to 250 psig (17 bar). Thus-up to 250 psig (17 bar)-air is vented at slightly below steam temperature.
