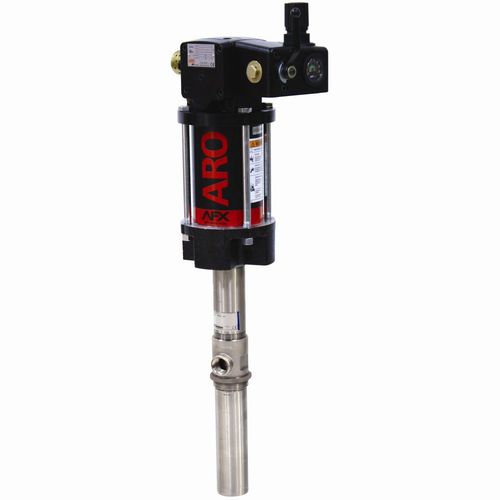

Piston pump AF0409CXXXXX
oilacidpneumatic

piston pump
piston pump
Add to favorites
Compare this product


Characteristics

Fluid
oil, acid
Operation
pneumatic
Technology
piston
Domain
industrial
Applications
washing, cleaning, spray, transfer
Material
stainless steel
Flow

Max.: 14.8 l/min
(3.90975 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Pressure

Max.: 103 bar
(1,493.889 psi)

Min.: 0 bar
(0 psi)

Description

Simply Versatile 2-ball pumps are among the most versatile in the ARO® line. They are capable of handling applications from simple transfer to the extrusion of low- to medium- viscosity materials up to 100,000 centipoise (cPs) with fluid delivery up to 18.1 gpm (68.6 L/min). Applications advantages of 2-balls: Spray: 2-ball pumps deliver the constant flow rate and pressure needed for consistent and efficient coatings applications Transfer & Supply: Depending on the model, some 2-ball pumps can achieve flow rates up to 18.1 gpm, providing dependable results Extrusion: 2-ball pumps generate pressure to handle extrusion of low-to medium-viscosity Lubrication: ARO® 2-balls pumps provide the flow and pressure required for moving light oils and grease lubricants High Pressure Cleaning: ARO® Wash Pump Packages are portable and offer the the right option for industrial cleaning applications
