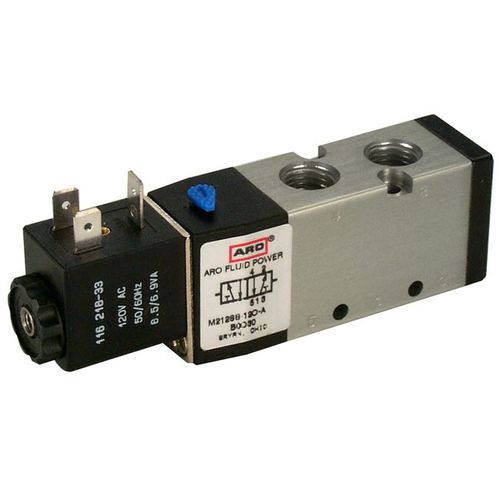

Spool pneumatic directional control valve MaxAir 4

pilotpneumatic4-way

4-Way Air Solenoid & Pilot Valves 4 way, 2 & 3 position single solenoid, double solenoid, single pilot, double pilot actuations, available in 1/4", 3/8", and 1/2" NPT ports. These valves can be used inline or mounted on a manifold. Features Ideal for packaging, material handling and air motor applications. Ideal for double acting pneumatic cylinders Compact size with excellent flow capacity Single and double solenoid or pilot models Three voltages available 120 VAC, 12 and 24 VDC Lightweight aluminum bodies and Buna-N seals are standard Manifold mounting available, blanking plates available for future expansion. Max/Air valves use Alpha style 22mm coil 1/4" = 26 mm body size 3/8" = 30 mm body size 1/2" = 34 mm body size 3-position spool function provides wider application flexibility: MaxAir offers 3-position spool configuration with all ports blocked in center. Solenoid coils and connectors provide quick, clean connections: Coils are Class F rated for 100% duty cycle applications at 122° F (50° C). AC or DC coils can be interchanged on the same solenoid stem. Each solenoid connector acts as its own junction box, with molded connectors and gaskets to protect electrical connections. Design meets NEMA-4 classifications.
