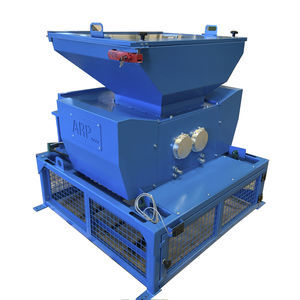

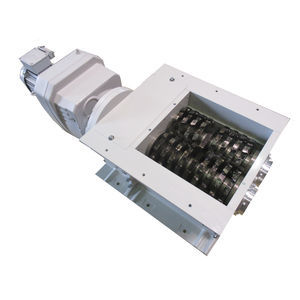

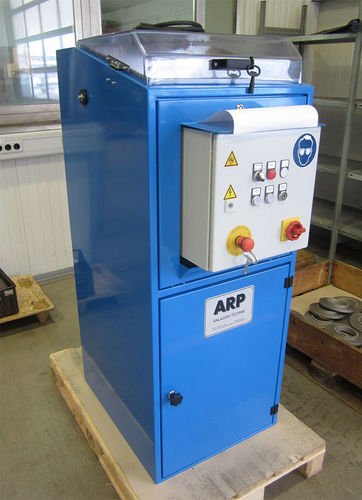

Double-shaft shredder CS series
paperchipfor cardboard

Double-shaft shredder - CS series - ARP GmbH & Co. KG - paper / chip / for cardboard
Double-shaft shredder - CS series - ARP GmbH & Co. KG - paper / chip / for cardboard
Double-shaft shredder - CS series - ARP GmbH & Co. KG - paper / chip / for cardboard - image - 2
Double-shaft shredder - CS series - ARP GmbH & Co. KG - paper / chip / for cardboard - image - 3
Double-shaft shredder - CS series - ARP GmbH & Co. KG - paper / chip / for cardboard - image - 4
Double-shaft shredder - CS series - ARP GmbH & Co. KG - paper / chip / for cardboard - image - 5
Double-shaft shredder - CS series - ARP GmbH & Co. KG - paper / chip / for cardboard - image - 6
Add to favorites
Compare this product


Characteristics

Number of shafts
double-shaft
Application
paper, chip, for cardboard, metal, for waste, plastic, glass, for straw, for hay, for food waste, for vegetal cover destruction, industrial waste
Other characteristics
rugged, compact, high-torque, mobile, reinforced
Power

Max.: 15,000 W

Min.: 1,500 W

Output

Max.: 2,000 kg/h
(4,409 lb/h)

Min.: 30 kg/h
(66 lb/h)

Description

ARP system solutions for grinding: - metal chips, paper and cardboard packaging, foils and rubber, plastics, metal/plastic containers, carpeting and textiles, glass and fluorescent tubes, manufacturing waste and lead frames,industrial waste and special waste, household waste, car tyres and bumpers, foam and filter fleece,hospital waste, fast-food waste, palettes and fruit crates, wooden boxes, oil cans and filters and much more… Technical data: - intended for cutting units:ZW 300, ZW 400, ZW 500, ZW 900(other on request) Filling:by hand, forklift, lift-tilt device, conveyor technology Options:hydraulic or manual compactor, hopper, underframe, housing as per customer requirements Throughput capacity (kg/h) *: - Steel: - 60…2000 kg/h Aluminium: - 30…1500 kg/h Other materials: - On request Cutter: - Depending on the application, the machines can be equipped with various blade geometries Driving power: - 1,5-15 kW Shredder opening L x W: - Please refer to the technical specifications for the cutting system

Catalogs

No catalogs are available for this product.

See all of ARP GmbH & Co. KG‘s catalogs
