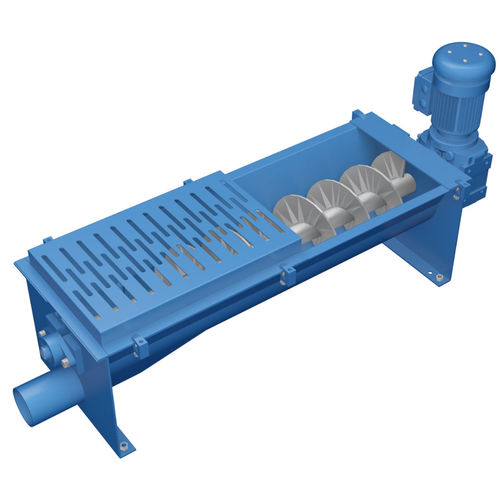

Chip suction unit VSS 100

industrialwith vacuum pumpmobile

The vacuum suction unit conducts the shredded chips via a worm conveyor to an intake port connected to the suction system. The vacuum suction unit is normally mounted downstream of the discharge conveyor of a machine tool. As an option, a shredder can be used upstream, in order to break up the chips to an extractable quality. Throughput capacity: - up to approx 100 kg/h Driving power of screw conveyor: - 0,25 kW Weight (net): - ca. 67,5 kg Dimensions L x W x H: - 1250 x 465 x 360 mm Feed opening L x W: - 405 x 300 mm
