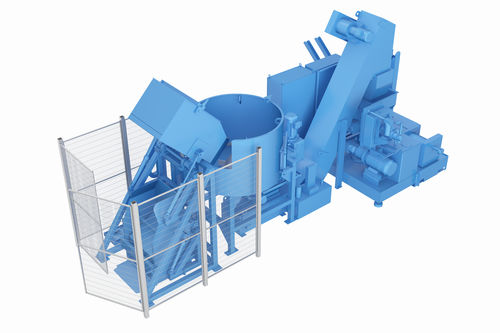

Chip processing plant
here assembled with lifting and tilting device, chip bunker with chip cutter, scraper conveyor, briquetting plant and control cabinet.
Suitable for steel chips, VA chips, aluminum chips
Separates oil and other coolants from chips
Capacity approx. 300kg/h, expandable
Technical data :
Lifting and tipping device: tipping height approx. 2.000mm, tipping angle 150°, device width approx. 1660mm, container type is fixed approx. 100l, lifting speed approx. 5,0m/min, motor power 3 to 4kw
chip hopper: hopper with agitator arm incl. gear motor and level control
dimensions of the bunker: diam. 1.500mm, height will be adjusted, usable volume approx. 1.700l
Chip cutter ZW500, complete incl. gear motor. Design as two-shaft cutting unit, cutting knives in hardened design as 2,4, 10-tooth knives.
length: 1.601mm, width 727mm, height 335mm without gearbox, motor power 5,5kw, connection 3x 400V, 50Hz, weight: 860kg
scraper conveyor: loading length 1.000mm, total length 4.000mm, useful width 500mm, height of discharge approx. 1.600mm, max. gradient 55°, motor power approx. 1,1kW, connection 3x 400V, 50Hz
briquetting plant: hydraulic motor 11,0kW, oil tank 420l, incl. cooling, system pressure 300bar, pressing pressure 2,3kg/cm², briquette size 60x60x ~40-70mm, hopper 600x1000 level monitored, capacity 250l, incl. sep. electr. switch cabinet, with discharge rails for briquettes, space requirement ~1600x1600x1950mm, weight ca. 1.900kg
