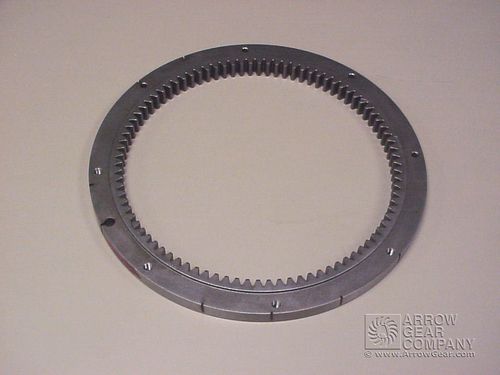

Spur gear straight-toothedflangesteel
Add to favorites
Compare this product
Characteristics
- Type
- spur
- Teeth
- straight-toothed
- Configuration
- flange
- Material
- steel
Description
Internal Spur Gears
Internal spur gear
An Internal Spur Gear, similar to a regular spur gear, has a cylindrical pitch surface with teeth that are parallel to the axis. However, with an Internal Spur Gear, the gears make internal contact.
Arrows size range and capabilities for Internal Spur Gears are provided in the list below.
Maximum Pitch Diameter 32
Diametral Pitch 3.6 48
Face Width 8.0
Unground Tooth AGMA Q9
Ground Tooth AGMA Q13
