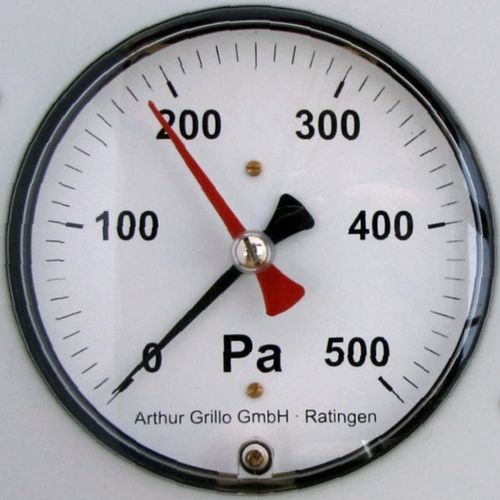

Differential pressure gauge DA2000

analogpanel-mountwall-mounted

Differential pressure gauge - DA2000 Diaphragm elementSmallest measuring range 0…100 Pa Wide 270° analog display – scale length ca. 250 mm No supply voltage needed Scaling in m3/h possible Manometer with a diaphragm element for indication of pressure, under pressure or differential pressure of non aggressive gas. The Manometer is delivered with accessories for mounting in front or behind a panel or wall installation. Optional are: * Two limit value pointers red or green * Manometer with analog output signal * Combination of indicator and pressure switch fitted in a wall mounting bracket TECHNICAL SPECIFICATIONS: Operating mode: Measuring mode Measuring medium: Air or non-aggressive gases Measuring principle: Electromechanical diaphragm measuring system Measuring unit: Pa Smallest measuring range: 0…100 Pa (1 mbar) Measuring range selection: factory preset Storage temperature: -25…+60°C
