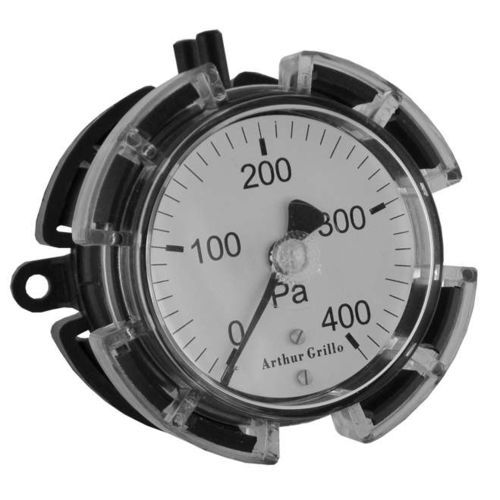

Differential pressure gauge DA85

analogwall-mounteddiaphragm

Differential pressure gauge - DA85 Diaphragm elementSmallest measuring range 0…200 Pa Analogue scale Compact size of about ca. 70 mm Manometer with diaphragm element for indication of pressure, under pressure or differential pressure of non-aggressive gas. TECHNICAL SPECIFICATIONS: Operating mode: Measuring mode Measuring medium: Air or non-aggressive gases Measuring principle: Electromechanical diaphragm measuring system Measuring unit: Pa Smallest measuring range: 0…200 Pa (2 mbar) Measuring range: 0…200 Pa (2 mbar), 0…400 Pa (4 mbar), 0…1000 Pa (10 mbar), 0…2000 Pa (20 mbar), Measuring range selection: Factory preset Storage temperature: -25…+60°C PERFORMANCE: Overpressure protection: 0.2 bar Static pressure: max. 0.2 bar Zero point calibration: Adjustable by REEDcontact, no cyclic zero-point calibration required Reaction time: direct
