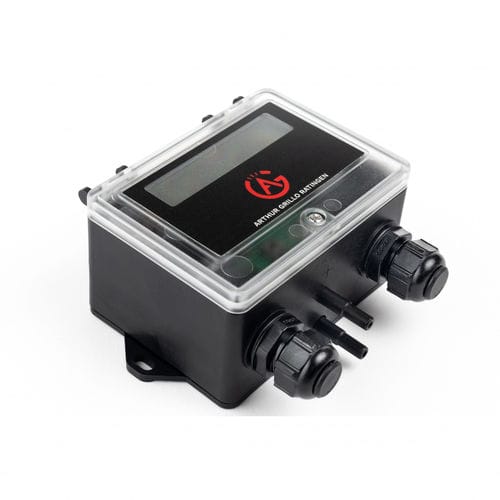

Differential pressure flow regulator DPC200R

diaphragmfor gasfor HVAC applications

Flow regulator with relay output - DPC200R Electromechanical diaphragm measuring system Alphanumeric LCD-display Analogue output 0…10 V Relay alarm output for measuring and control mode Selectable measurements (differential pressure or volume flow) Selectable units (metric or imperial) Adjustable k-factor for volume flow calculation Controlling mode or measuring mode selectable Measuring mode with adjustable limit value Control mode with adjustable: -2 setpoints -PI parameters for PI algorithm -maximum output voltage control action: positive / heat or negative / cool GRILLO-DPC differential pressure controllers / volume flow controllers are used to measure and control low differential pressures of non-aggressive gases, especially air. A signal of 0…10V is available to the user as an analog output. Depending on the setting of the device, this signal has different meanings. If the instrument is used as a pressure sensor, the output signal is proportional to the measured pressure. As a volume flow sensor, the device provides a root-equipped output signal. In pressure or flow rate control, the output signal represents the manipulated variable of the PI control. It is used, for example, in air conditioning technology for controlling fans, monitoring room pressure or controlling filters. In addition to the analogue output, an additional alarm output (open collector) is available for limit value monitoring or filter monitoring. TECHNICAL SPECIFICATIONS: Operating mode: Measuring mode or control mode Measuring medium: Air or non-aggressive gases
