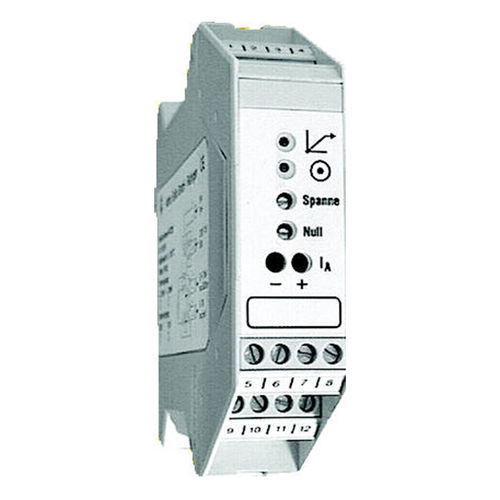

DIN rail mount temperature transmitter WT225

Pt1003-wireresistance

• Transmitter for connection to a Pt100 element , mV transmitter or potentiometer • Measurement and span from the front by trimmer • Operating temperature 0…50 ° C • Supply voltage 230/115 Vac, 24 Vac or 24 Vdc • Plastic housing for mounting on 35 mm DIN rail according to EN 50022 (DIN-rail) For connection to Pt100 – or mV measuring primary elements – or resistance potentiometer. Output signals are both a voltage signal 0…10 V and a current signal 0/4…20 mA. Both output signals are related to their common negative pole. Input: Thermoresistance element Pt100 in three-wire circuit Measurement range: Customer-specific presetting required! Output: 0...10 V and 0/4...20 mA, temperature linear Supply voltage: 230/115 Vac, 24 Vac or 24 Vdc Input: Voltage from10 mV, Measurement range: Customer-specific presetting required! Output: 0...10 V and 0/4...20 mA, supply voltage: 230/115 Vac, 24 Vac or 24 Vdc Transmitter WF225 Input: resistance, Measurement range: Customer-specific presetting required! Output: 0...10 V and 0/4...20 mA, supply voltage: 230/115 Vac, 24 Vac or 24 Vdc
