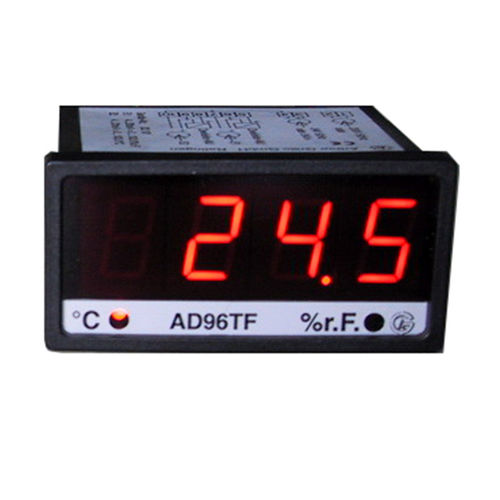

Temperature indicator AD96TF

relative humidity4-digitwith LED display

• 4-digit digital indicator with 20mm high LED-display • DIN case 96 x 48 mm • Input signal 0… 1 V, 0… 10 V or 0/4…20 mA • Supply voltage for 2 wire transmitter (approx. 18 Vdc) available • Cyclic switching between two input signals • Power supply 24 Vac, 24 Vdc or 230 Vac 4-digit digital display with 20 mm high LED display in the DIN Case 96 x 48 mm. As the input signal voltages can 0…1 V, 0…10 V or 0/4…20 mA currents are processed. It gives the display a DC voltage for powering two two-wire transmitters The display will cycle between the two input signals are switched. The evaluation of the two signals is digital. A temperatur-/humiditytransmitter can be connected. Then the display shows the cyclical change of temperature and relative humidity. TECHNICAL SPECIFICATIONS: Operating Mode: Measurement Mode & Display Measured material: Power & Temperature Measuring range: 0 … 1 V, 0 … 10 V, 0/4 … 20 mA; Power supply of two two-phase transmitters; Food supply approx. 18 Vdc Ambient temperature: -10 … 50 °C no condensation Rating of the Display: Internal digital evaluation of the start of measurement and span Limit: 2 potential-free change-over contacts ACCURACY / ERROR LIMIT:: Measuring accuracy: 1.5% of the scale Input Impedance: max. 10 bit
