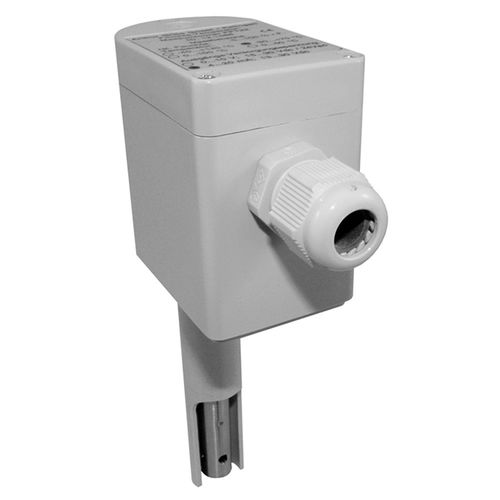

Outdoor temperature probe AF1
Pt100Pt1000wall-mount

Outdoor temperature probe - AF1 - Arthur Grillo GmbH - Pt100 / Pt1000 / wall-mount
Outdoor temperature probe - AF1 - Arthur Grillo GmbH - Pt100 / Pt1000 / wall-mount
Add to favorites
Compare this product


Characteristics

Technology
Pt100, Pt1000
Mounting
wall-mount
Protection level
IP65
Applications
for the petrochemical industry, for storage tanks, for pipelines, outdoor, for heat meters
Other characteristics
compact
Temperature

Max.: 60 °C
(140 °F)

Min.: -30 °C
(-22 °F)

Probe diameter

9 mm
(0.4 in)

Description

Outdoor temperature sensor • Measuring resistor Pt100 according to DIN EN 60751 • Sun protection and mounting clips for wall mounting Application area Resistance thermometer for temperature measurement up to max. 60 °C. A measuring resistor Pt100 according to DIN EN 60751 is used as measuring element. Field of application: Heating, air-conditioning and ventilation technology, in machine, plant, tank, pipeline and apparatus construction as well as in the chemical and petrochemical industries. TECHNICAL SPECIFICATIONS: Operating mode: Measuring mode Measuring medium: Temperature Measuring principle: Pt100 or PT1000 classes A according DIN EN 60751 Measuring unit: °C ACCURACY / ERROR LIMIT: Long-term stability: Max. R0-Drift 0,05 % / year
