Double lip seal RPS seriesroundpolyurethanerod
Add to favorites
Compare this product
Characteristics
- Type
- double lip
- Configuration
- round
- Material
- polyurethane
- Application
- piston, profile, rod
- Fluid
- for mineral oil
- Other characteristics
- abrasion-resistant
- Temperature limit
Max.: 110 °C
(230 °F)Min.: -35 °C
(-31 °F)- Pressure limit
400 bar
(5,801.5 psi)- Diameter
Max.: 200 mm
(7.874 in)Min.: 4 mm
(0.157 in)- Outer diameter
Max.: 220 mm
(8.661 in)Min.: 8 mm
(0.315 in)- Shore A hardness
93 unit
- Speed
0.5 m/s
(1.6 ft/s)
Description

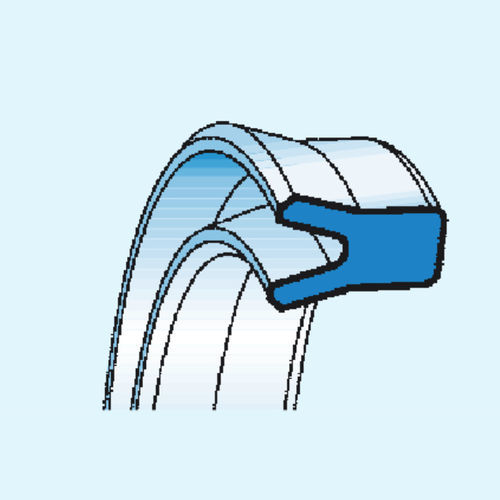

The RPS seal type combines in one solution two different installations and applications.
With two symmetrical lips, it can be used both for rod and piston sealing applications and for cylinders
working with simple or double effect.
The profile with equal lips and the deep groove ensures low friction and a linear movement even at
low pressure.
The proposed material is a “C0” type polyurethane, with high elasticity modulus, fundamental for the
sealing, low compression-set and high abrasion resistance.
Compound reference: C0
The high modulus of elasticity of the polyurethane helps the assembling.
It is recommended to lubricate the seals before installation and to eliminate any edges or flash which could damage the seal.
