O-ring seal PSH 0320 0200 100 CRroundpolyurethaneresin
Add to favorites
Compare this product
Characteristics
- Type
- O-ring
- Configuration
- round
- Material
- polyurethane, thermoplastic, resin
- Application
- piston, cutting
- Fluid
- for mineral oil
- Other characteristics
- abrasion-resistant
- Temperature limit
Min.: -35 °C
(-31 °F)Max.: 110 °C
(230 °F)- Pressure limit
400 bar
(5,801.5 psi)- Diameter
Min.: 20 mm
(0.787 in)Max.: 72 mm
(2.835 in)- Outer diameter
Min.: 32 mm
(1.26 in)Max.: 95 mm
(3.74 in)- Speed
0.5 m/s
(1.6 ft/s)
Description

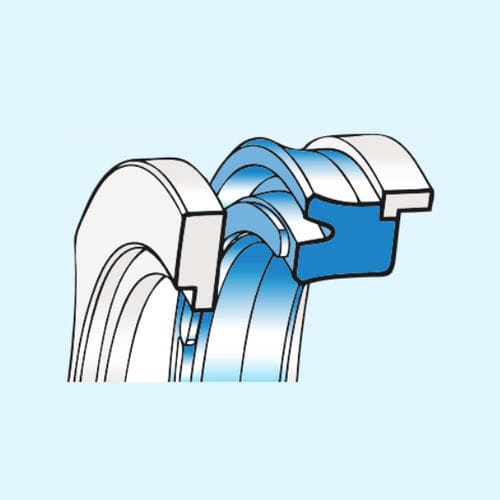

The PSH piston seal type is similar to the PSA type, but it has an acetylic resin wear ring to mitigate
possible misalignments and avoid extrusion.
A RR retaining ring made of thermoplastic resin prevents seal ejection during the cycle inversion.
The proposed material is a C0-type polyurethane with high modulus of elasticity, low compression set
and high abrasion resistance. The wear ring is made of a R0-type acetylic resin reinforced with
fibreglass.
Compound reference PSH: CR
The retaining seal is made of thermoplastic resin, R2 type.
Compound reference RR: R2
Avoid all cutting edges and flash on the piston where the seal is housed.
A lead-in chamfer in the groove will facilitate the piston insertion.
Lubricate the seal before installation. For further information please refer to the installation instructions on page 26.
