O-ring seal KDSA seriesroundrubberNBR
Add to favorites
Compare this product
Characteristics
- Type
- O-ring
- Configuration
- round
- Material
- rubber, NBR
- Application
- piston, guide, cylinder
- Other characteristics
- compact, anti-extrusion
- Temperature limit
Min.: -30 °C
(-22 °F)Max.: 100 °C
(212 °F)- Pressure limit
400 bar
(5,801.5 psi)- Diameter
Min.: 24 mm
(0.945 in)Max.: 143 mm
(5.63 in)- Outer diameter
Min.: 32 mm
(1.26 in)Max.: 160 mm
(6.299 in)- Shore A hardness
70 unit
- Speed
0.5 m/s
(1.6 ft/s)
Description

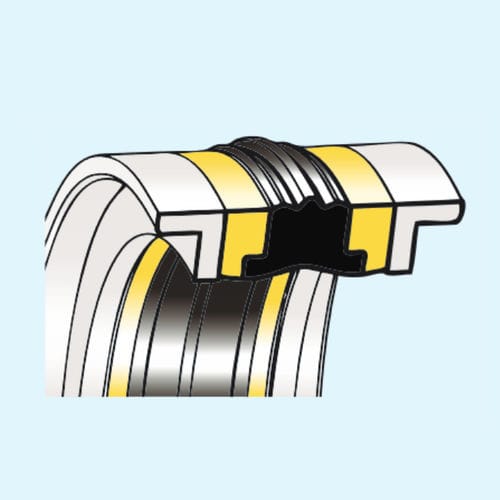

The KDSA compact seal is made of a central unit made of NBR working as a seal, two side
supports, working as anti-extrusion ring, and two external guide rings, keeping aligned the piston in
the cylinder.
The assembling of this seal can be carried out in either closed groove in a mono-block piston, or in
open groove in a two-parts piston.
The assembling has to be done as follows:
Rubber element;
Supports;
Wear rings.
The piston must not have machining scores which
may damage the rubber unit during the installation
