O-ring seal KDSB seriesroundelastomerrubber
Add to favorites
Compare this product
Characteristics
- Type
- O-ring
- Configuration
- round
- Material
- rubber, elastomer, NBR, TPE, thermoplastic, POM, resin
- Application
- piston, cylinder
- Other characteristics
- compact, anti-extrusion
- Temperature limit
Max.: 100 °C
(212 °F)Min.: -30 °C
(-22 °F)- Pressure limit
Max.: 300 bar
(4,351.1 psi)Min.: 0 bar
(0 psi)- Diameter
Max.: 225 mm
(8.858 in)Min.: 11 mm
(0.433 in)- Outer diameter
Max.: 250 mm
(9.843 in)Min.: 20 mm
(0.787 in)- Shore A hardness
70 unit
- Speed
0.5 m/s
(1.6 ft/s)
Description

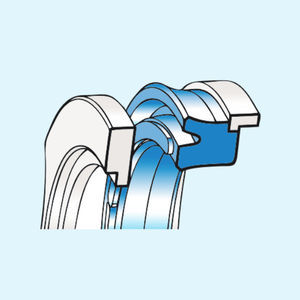

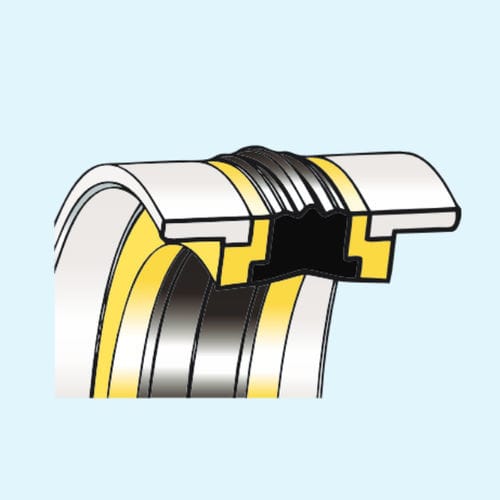

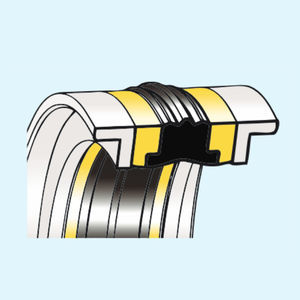

The KDSB compact seal is made of a central unit in NBR working as a seal, two side supports, working
as anti-extrusion ring, and two external guide rings, keeping aligned the piston in the cylinder.
The compounds used to manufacture this seal type are the following:
The sides support are made of a thermoplastic elastomer (TPE)
The external wear rings are made of polyacetalic resin (POM)
Compound reference: CX
The assembling of this seal can be carried out in either closed groove in a mono-block piston, or in
open groove in a two-parts piston.
The assembling has to be done as follows:
Rubber element;
Supports;
Wear rings.
Avoid machining scores on the piston which may damage the rubber unit during the installation
