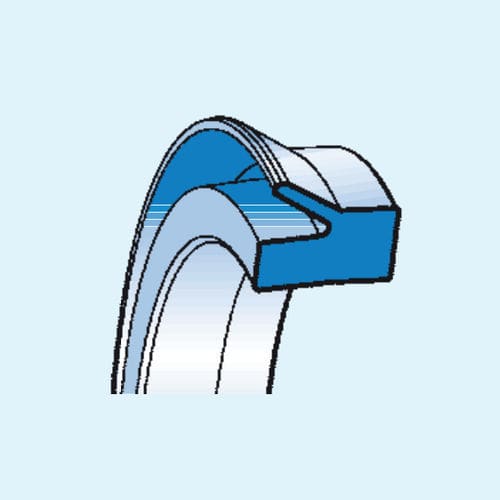

Lip seal PSP seriesroundpolyurethanepiston
Add to favorites
Compare this product
Characteristics
- Type
- lip
- Configuration
- round
- Material
- polyurethane
- Application
- piston, rod
- Other characteristics
- dynamic, static
- Temperature limit
Max.: 90 °C
(194 °F)Min.: -30 °C
(-22 °F)- Pressure limit
20 bar
(290.1 psi)- Diameter
Max.: 230 mm
(9.055 in)Min.: 3 mm
(0.118 in)- Outer diameter
Max.: 250 mm
(9.843 in)Min.: 6 mm
(0.236 in)- Shore A hardness
85 unit, 90 unit
- Speed
1 m/s
(3.3 ft/s)
Description
The PSP piston seal has been designed for single and double action pneumatic cylinders.
The deep groove between the dynamic and the static lip, together with back-to-back lips radius, enhance seal sliding, even where there is a lack of environmental lubrication.
The reduced dimensions, together with the high flexibility of the material, also facilitates installation in closed grooves.
Standard compound reference: B0
Alternative compound reference: A0
It is important to remove flashes or cutting edges in the housing to avoid damages.
The rod must not have flashes and must present a lead-in chamfer (see page 153).
