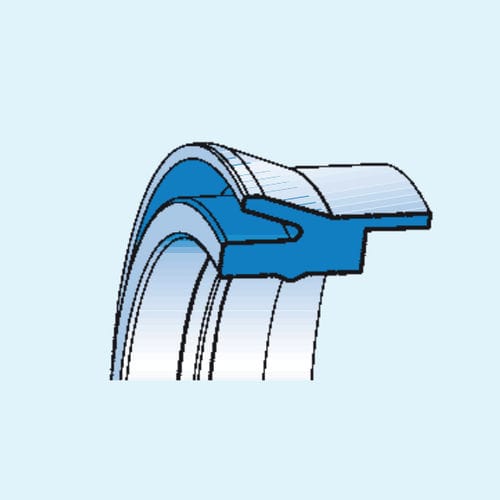

Lip seal MSP seriesroundpolyurethanelubricant
Add to favorites
Compare this product
Characteristics
- Type
- lip
- Configuration
- round
- Material
- polyurethane
- Application
- piston, housing, lubricant
- Other characteristics
- pneumatic, compact
- Temperature limit
Min.: -30 °C
(-22 °F)Max.: 90 °C
(194 °F)- Pressure limit
20 bar
(290.1 psi)- Diameter
Min.: 4 mm
(0.157 in)Max.: 10 mm
(0.394 in)- Outer diameter
Min.: 8 mm
(0.315 in)Max.: 25 mm
(0.984 in)- Shore A hardness
85 unit, 90 unit
- Speed
1 m/s
(3.3 ft/s)
Description
The MPS seal has been specifically designed either for pneumatic compact short stroke cylinders and single/double effect cylinders.
The guiding element is integrated on the seal. Specific notches keep the lubricant grease
maintaining a sliding effect on the piston for long time.
The magnet is located between the two opposed gaskets.
For specific needs or problems, our technical office is at your complete disposal with tailor-made solutions.
Standard compound reference: B0
Alternative compound reference: A0
It is important to remove flashes or cutting edges in the housing to avoid damages.
The installation is made by overlapping the seal on the piston diameter.
Warning: the piston must be correctly shaped according to the drawing of the MPS dimensions table
