Wiper seal BWA seriesliproundpolyurethane
Add to favorites
Compare this product
Characteristics
- Type
- lip, wiper
- Configuration
- round
- Material
- polyurethane
- Application
- housing, construction
- Temperature limit
Min.: -30 °C
(-22 °F)Max.: 90 °C
(194 °F)- Pressure limit
20 bar
(290.1 psi)- Diameter
Min.: 3 mm
(0.118 in)Max.: 50 mm
(1.969 in)- Outer diameter
Min.: 8.8 mm
(0.346 in)Max.: 62 mm
(2.441 in)- Shore A hardness
85 unit, 90 unit
- Speed
1 m/s
(3.3 ft/s)
Description

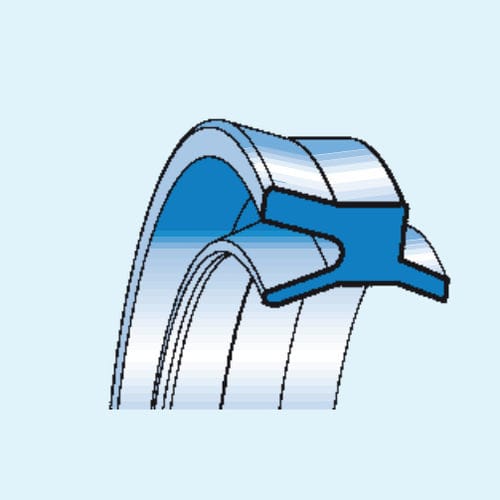

The BWA sealing part combines an asymmetric lip seal profile with a wiper.
Since it is installed in a single groove, the BWA seal has several advantages:
– reduced overall dimensions;
– faster construction of the groove.
Standard compound reference: B0
Alternative compound reference: A0
Remove cutting edges and/or flashes from the housing where the wiper has to be installed
in order to minimise seal wear during operation.
