Wiper seal BWS serieslipSteppolyurethane
Add to favorites
Compare this product
Characteristics
- Type
- lip, wiper
- Configuration
- Step
- Material
- polyurethane
- Application
- housing, profile
- Other characteristics
- static
- Temperature limit
Min.: -30 °C
(-22 °F)Max.: 90 °C
(194 °F)- Pressure limit
20 bar
(290.1 psi)- Diameter
Min.: 4 mm
(0.157 in)Max.: 100 mm
(3.937 in)- Outer diameter
Min.: 8.1 mm
(0.319 in)Max.: 108 mm
(4.252 in)- Shore A hardness
85 unit, 90 unit
- Speed
1 m/s
(3.3 ft/s)
Description

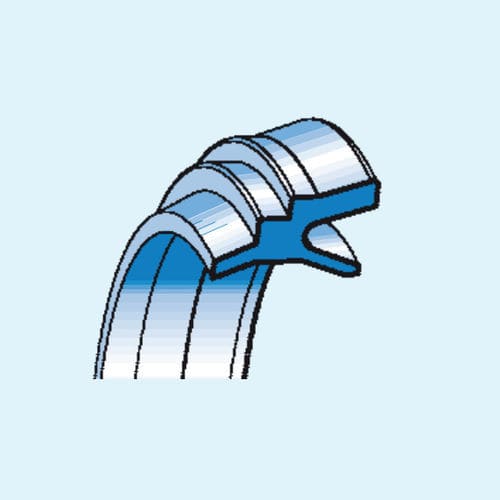

The BWS wiper combines an asymmetric lip seal profile with a wiper.
On the sealing lip the BWS has a radius allowing greater smoothness and on the static side thereduced size step facilitates installation, especially for small diameters.
The scraping part has a very thin lip so as not to influence the stick-slip effect in the cylinder
movement.
Standard compound reference: B0
Alternative compound reference: A0
Remove cutting edges and/or flashes from the housing where the wiper has to be installed
in order to minimise seal wear during operation. Warning: for heavy duty applications showing misalignments or imbalance and with diameters bigger than ø 16 mm, it’s recommend to hang the base of the wiper to the housing and not only to the step
