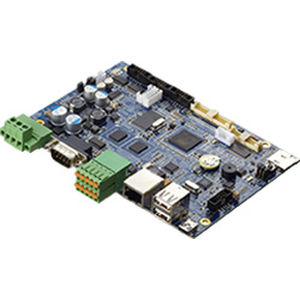

3.5" single-board computer M-506
ARM9ATMEL AT91SAM9G45

3.5" single-board computer
3.5" single-board computer
Add to favorites
Compare this product


Characteristics

Form factor
3.5"
Processor
ARM9, ATMEL AT91SAM9G45

Description

ATMEL 9G45, Linux-ready Single Board Computer with TTL / LVDS LCD interface, 1 x LAN, 4 x TTY ports and 4 x 480Mbps USB2.0 compliant Host ports Linux kernel 2.6.38 with file system CPU: ATMEL AT91SAM9G45, 400MHz Flash: 256MB, NAND type SDRAM: 128MB On-board TTL / LVDS LCD interface Supports 5V / 12V TFT LCD panels, up to 1280 x 860 pixels Supports Microsoft .NET Compact Framework 2.0 Ethernet: 1 x 10/100Mbps TTY: 3 x RS-232, 1 x RS-422 / 485 USB Host: 4 x USB 2.0 compliant supports high speed mode (480Mbps) micro-SD socket: up to 32GB GPIO: 4 pins, CMOS-level Dimension: standard 3.5" form factor Power input: 12~40VDC

Catalogs

M-506
M-506
1 Pages
