Anchor bolt FBC

T

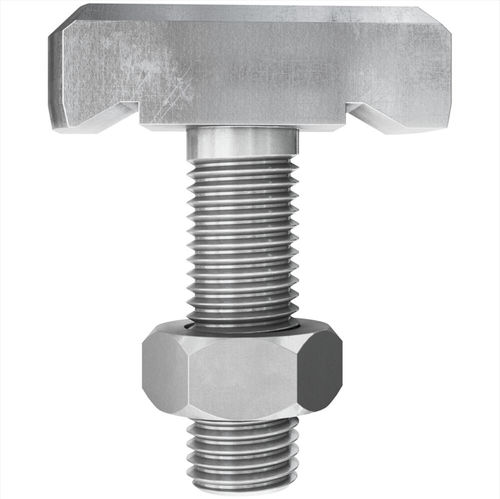

Plain T-Bolt for use in combination with smooth cold-formed or smooth hot-rolled anchor channels. Advantages FBC bolts with smooth underside fitting to Cast-in Channels with smooth channel lips. High load bearing capacity combined with flexibility. Two directional load capacity. Ideal prepositioned fixing solution, capable of covering on-site tolerances. Suitable for applications in cracked and non-cracked concrete. Permanently adjustable fixing solution. Properties Hot-dip galvanised ≥ 50 µm acc. to EN ISO 10684:2004 + AC:2009 Steel grade 8.8 acc. to EN ISO 898-1:2013 Applications Suitable for all types of buildings or structures Façades Prefabricated elements Railways Metro tunnels and stations Industrial applications Functionality FBC channel bolts can be variably set in the planned position of Cast -in Channels. They are easily fixed by turning them clockwise and then applying the specified torque moment. Suitable for use in combination with hot-rolled and cold-rolled fischer Cast-in Channels FES-C, FES-H and FES-H-S.
