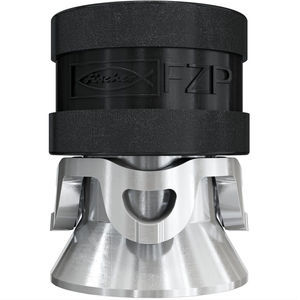

Expanding wall anchor FZP II A4

metal

The undercut anchor out of stainless steel for a concealed flush installation solution for façade panels out of natural stone or artificial concrete. These are fixed with a consistent drill hole depth aligned to the back of the panel. This type of fixing technology is used e.g. with calibrated façade panels or for reveal angle installation. Advantages The flush-mounting technology of the undercut anchor allows an easy, economical handling of reveals. The matching shape of the undercut anchor creates a inter-locking and stress-free fixing in the conical undercuted drill hole. The fixing is not externally visible, creating a visually appealing façade surface. Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel. This significantly reduces the bending moment of the panel. The anchor allows higher failure loads compared to common systems. Applications Exterior façades Interior façades Façade reveals Natural stone heating systems Building materials Natural stone (>20mm) Artificial concrete panels Functionality The drill hole is drilled with an absolute anchoring depth. Flush installation of the anchor. Wet diamond drilling: first cylindrical, then conical - to create the undercut. #Inserting the undercut anchor in the cylindrical-conical undercut hole Expanding the undercut anchor by "pressing down" the washer using the setting tools Stress-free and geometrical inter-locking fixing
