Avalanche thyristor TL171-320-6

for controlstud

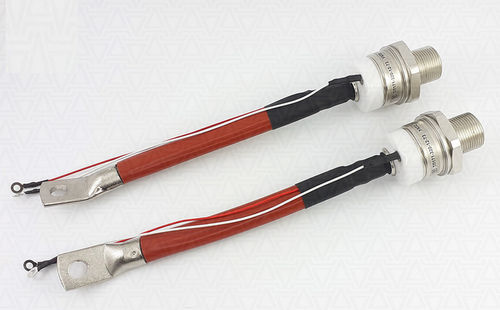

Stud Avalanche Thyristor TL171-320-6AS ENERGITM is general purpose stud thyristor, also known as TA171-320-6. Average forward current ITAV – 320 ampere, repetitive peak forward and reverse blocking voltage VDRM/VRRM – 600V. Stud thyristors are designed to convert and control DC and AC currents. "Air-cooled heatsinks O series for stud devices" for thyristor cooling are also available to order. Air heat sinks are used to cool the avalanche thyristors. To provide reliable thermal and electrical contact with the heatsink a tightening torque Md must be observed during assembly. For better heat dissipation of thyristor during assembly, heat conducting paste is used (this is a recommendation and is not a prerequisite for installation). The polarity of the thyristor is determined by the icon on the case. The base of the thyristor is the Anode, the flexible power lead is the Cathode, the flexible wire exiting the base of the power lead is the auxiliary cathode, the flexible wire exiting the case is the control electrode (Gate). The technical specifications, part numbering guide, polarity, dimensions and recommended coolers for thyristors are listed below. Air and water heat sinks are used to cool the thyristors. To provide reliable thermal and electrical contact with the heatsink a tightening torque Md must be observed during assembly. For better heat dissipation of thyristor during assembly, heat conducting paste is used. Our company provides a quality guarantee for avalanche thyristors of 2 years from the date of purchase. When supplying thyristors, if necessary, we provide technical passport and certificate of conformity.
