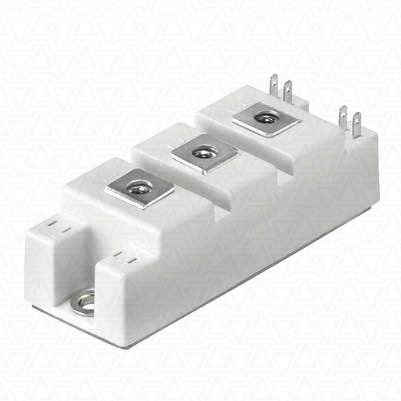

IGBT transistor module SKM145GB066D

IGBT Module AMM145GB066D AS ENERGITM is a replacement, analogue, alternative and equivalent for IGBT module SKM145GB066D SEMIKRON (SEMITRANS package). Nominal collector current ICnom – 150 ampere, continuous collector current IC – 195 ampere, collector-emitter voltage VCES – 600V. Switches – Half Bridge. IGBT Modules are housed in a standard industrial case making it easy to easy integrate of the device into existing equipment. The IGBT modules (Insulated Gate Bipolar Transistor) are used as switching elements for the power converters of variable-speed drives for motors, AC inverter drives, UPS, electronic welders, brake choppers, uninterruptable power supplies, and others. Available topologies include half bridge, single switch, sixpack, 3-level and many more, covering every application field. The IGBT power module is becoming the preferred device for high power applications due to its ability to enhance switching, temperature, weight and cost performance. The technical specifications of IGBT module SKM145GB066D and AMM145GB066D, pdf datasheet, topology of internal connection, outline drawing and dimensions are listed below. Our company provides a quality guarantee for IGBT modules of 2 years from the date of purchase. When supplying IGBT modules, if necessary, we provide technical passport and certificate of conformity.
