SCR diode SKN 2F50/04

standardrectifierAC

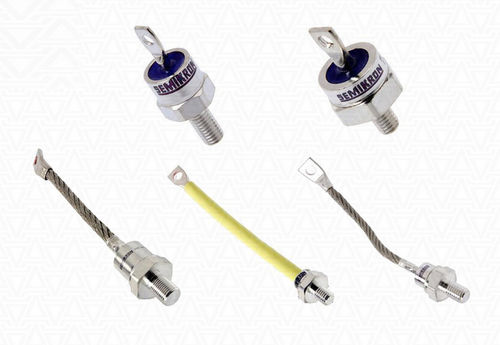

Rectifier Diodes ADSN2F50-04 AS ENERGITM in stud design, is a replacement, analogue, alternative and equivalent semiconductor device for diode SKN 2F50/04 Semikron. Diode package – E10, mounting standard thread – М6, (on request, UNF thread 1/4"-28UNF-2A), weight – 20 g. Average forward current IF(AV) – 50 ampere, repetitive peak reverse voltage VRRM – 400V. "Air-cooled heatsinks O series for stud devices" for diode cooling are also available to order. Air and water heat sinks are used to cool the diodes. To provide reliable thermal and electrical contact with the heatsink a tightening torque Md must be observed during assembly. For better heat dissipation of diode during assembly, heat conducting paste is used (this is a recommendation and is not a prerequisite for installation). Features of Fast Recovery Rectifier Diodes: low reverse recovery time; high switching speed; optimised for line frequency; low on-state losses; high reverse voltage and high current handling capabilities; standard stud housing; designed for high power industrial and power transmission applications. Their main applications are rectifiers for large AC drives, aluminum smelting and other metal refining as well as trackside supply. Rectifier Diodes AS ENERGITM have the following features: industry standard housing; low static and dynamic losses, high values of VRRM/VRSM, extensive experience of using the devices in various industries, range of voltages from 100 to 9000 V and amperages from 10 to 15000 A, high resistance to thermal and electric cycling. The technical specifications and parameters of SKN 2F50/04 and replacement ADSN2F50-04, datasheet PDF, outline drawing and dimensions are listed
