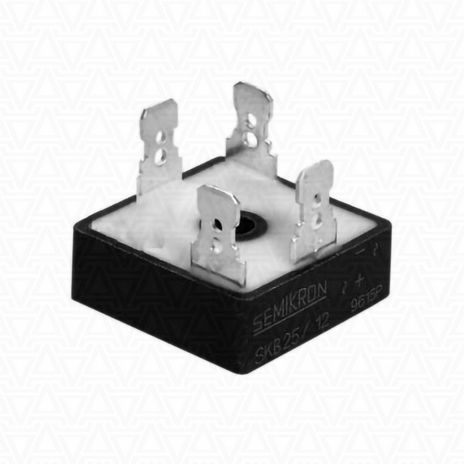

SCR diode rectifier bridge SKD 25/08

surface-mountdirect currentalternating current

Three Phase Diode Bridge Rectifier AMD 25-08AS ENERGITM is a replacement, analogue, alternative and equivalent semiconductor device for three phase diode bridges SKD 25/08 07275700 Semikron. Output direct current ID – 20 ampere, repetitive peak reverse voltage VRRM – 800V. An alternating current is fed to the input "~" of the circuit. In each of the half - periods the input current passes only through two diodes. As a result, at the output "+" and "-" we get a current pulsing at twice the frequency of the input current. Features of Three Phase Diode Bridges: low on-state losses; high reverse voltage and high current handling capabilities; square plastic case with isolated metal base plate and fast-on connectors; high surge current; easy chassis mounting; blocking voltage to 1600 V. Their main applications are: three phase rectifier for power supplies; input rectifiers for variable frequency drives; rectifier for dc motor field supplies; battery charger rectifiers. Three Phase Diode Bridges AS ENERGITM have the following features: industry standard housing; low static and dynamic losses, high values of VRRM/VRSM , extensive experience of using the devices in various industries. The technical specifications and parameters of SKD 25/08 and replacement AMD 25-08, datasheet PDF, outline drawing and dimensions are listed below. Our company provides a quality guarantee for diode bridges of 2 years from the date of purchase. When supplying diode bridges, if necessary, we provide technical passport and certificate of conformity
