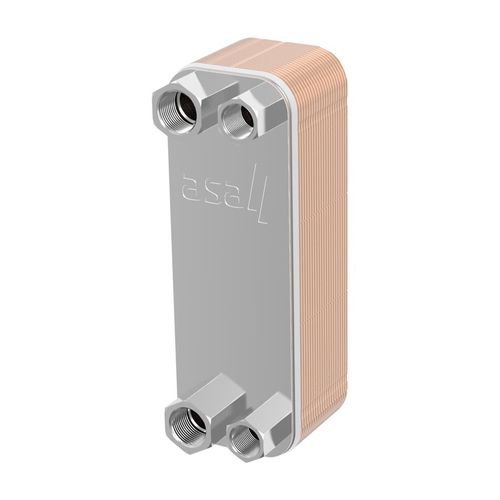

Brazed plate heat exchanger E
liquid/liquidstainless steelcompact

brazed plate heat exchanger
brazed plate heat exchanger
brazed plate heat exchanger
Add to favorites
Compare this product


Characteristics

Type
brazed plate
Fluid
liquid/liquid
Material
stainless steel
Other characteristics
compact, high-pressure
Power

Max.: 300 kW

Min.: 0 kW

Operating pressure

30 bar, 43 bar
(435.11 psi, 623.66 psi)

Temperature

Max.: 200 °C
(392 °F)

Min.: -160 °C
(-256 °F)

Description

The asa E plate heat exchanger is designed for maximum heat transfer using profiled plates of acid proof stainless steel. The plates form channels through which oil and water pass (alternating every other channel). At the front and back side of the plate package there are cover plates. The cooler plates are brazed together at all outer and inner points of contact. The cooler can be installed in charge-pump circuits as well as in return lines with high pressure variations. The asa E plate heat exchanger is designed for both cooling and heating applications. It is commonly used to cool hydraulic fluid and lubricating oil and can be used for water, air, steam and gas applications. Construction The Plate Heat Exchangers ASA-PL is designed for hydraulic fluid and lubricating. The benefits of plate hâte exchangers are: • strength • installation dimension • efficiency • low maintenance Design The structure of the ASA-PL cooling surfaces, i. thin, profiled plates made of acid-proof stainless Steel (1.4306) is compact and powerful. The plates are profiled on the one hand to achieve optimum heat transfer and on the other hand to form channels in which oil or water is guided. The plate pack has a cover plate on each side. The entire heat exchanger is soldered together at the outer edges and at the inner points of contact. The cooler can be installed in a feed pump circuit and in return lines with large pressure variations. This product is also suitable for water, airandgas. Standard Range Our standard range of plate heat exchanger covers a large field of applications to ensure you compétitive pricing, high quality and short delivery times.
