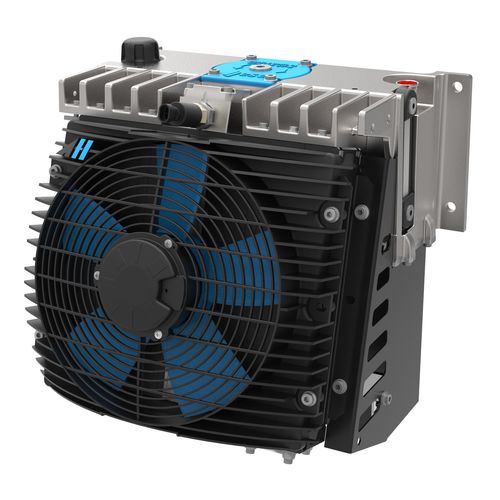

Oil cooler H-cube Series

compactstainless steelair-cooled

The H-cube is a modular system, which offers three tank sizes with four oil/air cooler sizes, various fan drive types and a suction or return line filter. With its compact dimensions and the flexibility of cooling performances and oil tank volumes, this system can easily be set up in various hydraulic applications. Choose the modules and accessories to customize the product to your application! Installation • real compactness • fast installation • lifting ports Operation • non ‘foaming oii’ design • DC control varies fan speed according to the actual oii température • various température switch settings available Heavy Duty Fan Motors • long iife design • brushless motor on request Optimized Fan guards • alternative air fiowon request Hydraulic Circuit • fewerseaiing joints • 2bar internai bypass, alternative settings available • réduction of hoses • low pressure drop Maintenance • minimal maintenance • easy insert function • filter change without oil change! • easy clean wavy air fin • suction or return filter • high standard filter rating Best Hardware • excellent corrosion protection • stainless Steel housings on request Connection • 90° angle and many options regarding thedimension of the connection • optional straight connector Applications Due to the flexible design concept, the H-cube System can be configured to various applications. One main benefit is, that the H-cube System can be flanged directly onto the framework of a truck, as well as transverse to the driving direction. ■ live floortrailers ■, front axle drive service unit ■ silo transporter ■ liquid tankers like crude oil trucks ■ food & Chemical transporter ■ compressor drive Systems
