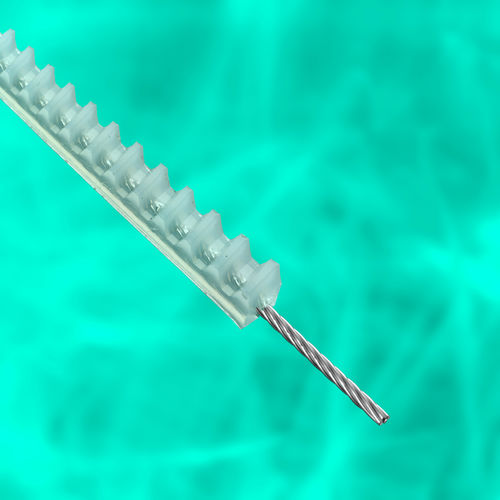

Straight-toothed gear rack stainless steelresinflexible
Add to favorites
Compare this product
Characteristics
- Teeth
- straight-toothed
- Material
- stainless steel, resin
- Other characteristics
- flexible, low-noise
Description
The flexible rack is a resin coating wire rope with stainless steel cable core, withstanding bending up to R30. Used as rack and pinion drive system, ideal when rack section needs to be flexible and high-force movement required, with excellent low-noise operation.
--- specifications ---
Breaking load of Gear rack: 200N
Minimum bending radius: 30mm
Rack size: W 3.0mm x H 3.6mm
Material: Nylon12(teeth), SUS304(cable core)
VIDEO
Catalogs
No catalogs are available for this product.
See all of Asahi intecc‘s catalogs
