Stainless steel film applicator

wire-wound rod

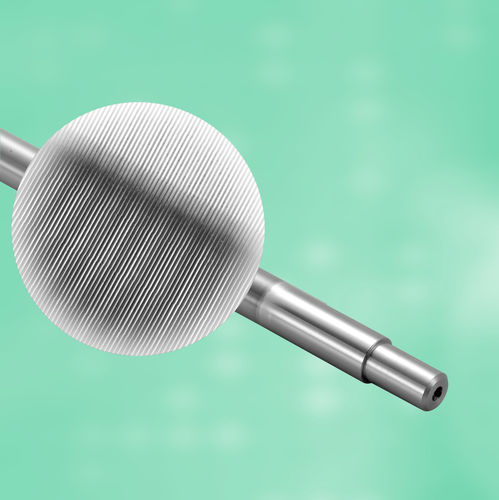

Wire Rod Coater (Product name: Wire Bar) is composed of a shaft with stainless steel wire wound around it, for applying a uniform thin coating on a film. The wire-wound is precisely made to minimize scratches on the surface, to control film thickness with very accuracy, and to realize precision coating quality, ideal for big film applications like LCD panel, with its coating width up to 3670mm. --- specifications --- Length: up to 3950 mm Coating width: up to 3670mm Shaft diameter: φ3 - 16 mm Wire wound OD: φ0.02 - 0.25 mm Wet film thickness: 1.5 - 18.8 μm
