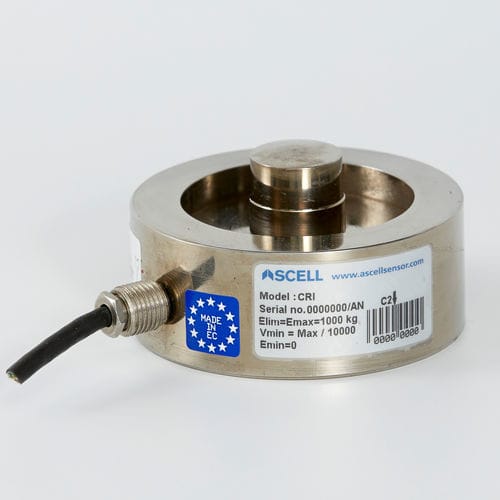

Compression load cell CRI C3
button typefor hopperfor silos

Compression load cell - CRI C3 - Ascell Sensor,S.L. - button type / for hopper / for silos
Compression load cell - CRI C3 - Ascell Sensor,S.L. - button type / for hopper / for silos
Add to favorites
Compare this product


Characteristics

Type
compression
Form
button type
Applications
for hopper, for silos
Other characteristics
OIML, stainless steel, precision
Rated load

Max.: 50,000 kg
(55.12 lb)

Min.: 150 kg
(330.69 lb)

Description

Stainless steel construction and mounting compatibility. High waterproofing thanks to its laser welding closure, which makes it suitable for the most demanding sanitary environments. Also available in Atex version. Excellent performance in terms of stability and precision approved in class C3 for 3.000 divisions. Due to its low profile construction it is very suitable for applications where there is not much space available, which makes its installation more compact with the anti-overturn systems. Capacities: 150kg – 300kg – 500kg – 1t – 2t – 3t – 5t – 7t – 10t – 20t – 30t – 50t Material: Stainless Steel Environmental protection: IP68 Approvals (2t a 10t) CE 3000 Div – TC8829 OIML 3000 Div – R60/2000-NL 1-16.09 Applications Silos, tanks, hoppers.
