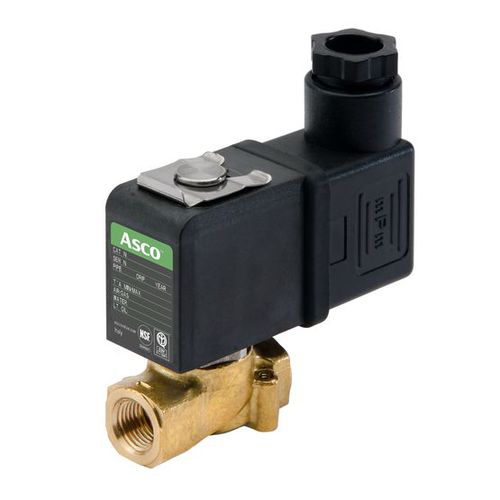

Direct-operated solenoid valve ASCO™ 256

2-waynormally closednormally open

The ASCO Series 256 solenoid valves are designed for shutoff control for a wide range of Industrial and commercial industry applications. The valves have a range of third-party approvals for applications ranging from fuel oil and gas burners to potable water and food service applications. Their compact design fits in tight spaces, they are mountable in any position and are available in multiple manifold configurations. The valves are ideal for bottling lines, and commercial kitchen, laundry, and heating equipment. Specifications Body Material Brass; Stainless Steel; Composite (PPS) Port Type NPTF, G, Push-to-Connect, Nut-for-Tube (Compression Fitting), and Pad-Mount Operating Environment Indoor to IP67 (EN 60529) Standards / Regulations CSA; IP67; NSF; UL Features Quick connect options for fast installation AC/DC interchangeability of the solenoid and rotatable coils. Subminiature NSF 61 Annex G and 169 versions with 316L stainless-steel, lead-free brass, and composite (PPS) constructions are available for potable water and food service Gas combustion models are available for industrial and commercial gas burner controls. The valves incorporate direct lift with resilient soft sealing for tight shutoff
