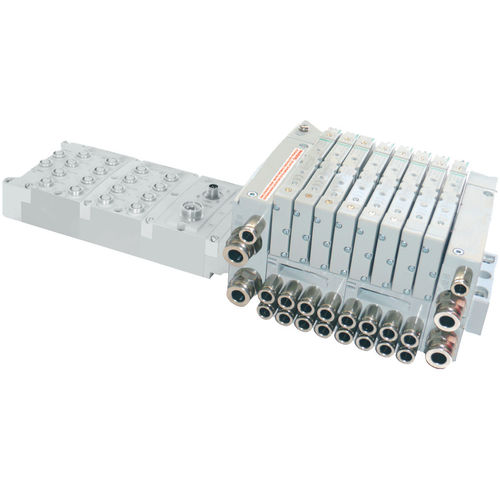

Spool distribution block AVENTICS™ 501

solenoid-operated3/2-way5/2-way

The AVENTICS Series 501 is a line of general purpose automation valves designed for directional control and piloting applications requiring compact size, high flow capability, and energy savings. Engineers can achieve the flow of a 15 mm to 20 mm valves in a more compact package, saving space, cost, and energy in their machine designs. In addition, no other valve in its class offers such a broad range of pressure regulator, pressure shut-off, and exhaust flow control accessories. The 501 Series valve’s pressure shut —off option permits users to replace individual valves without stopping their production process — reducing line downtime and maintenance. Features Modular design permits easy configuration and modification Sub-base mounted valve is well suited for in-panel valve piloting applications High flow rate, compact size, and optional mounting plate enable efficient use of cabinet space Dual three-way version enables placement of two, three-way valves in the space of a four-way valve Compatible with AVENTICS Series G3 and 580 electronic fieldbus platforms 580 CHARM node is compatible with DeltaV™ distributed control system with electronic marshalling
