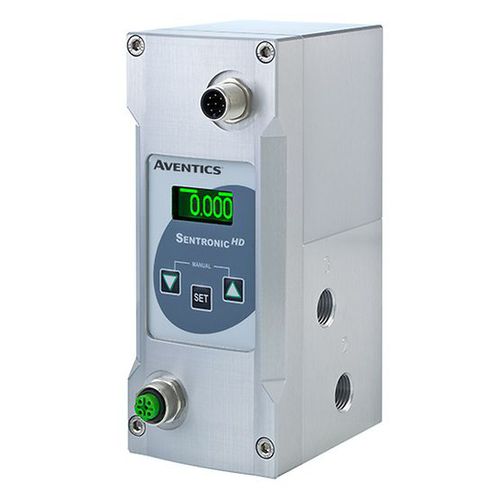

Proportional valve AVENTICS 616

plugpneumaticfor control

The AVENTICS Series 616 SentronicHD is a highly accurate 3-way valve with digital control and a broad range of diagnostic functions. The Data Acquisition Software (DaS) that comes with SentronicHD can be used to adjust the valve´s control parameters to a specific application. Command signal, feedback signal, and control parameters can be viewed in real time and adjusted as required. The SentronicHD valve can be configured for dual-loop control of process variables such as flow, force, speed, RPM, and temperature. The valve is suitable for air ride suspension systems, analytical and diagnostic equipment, biofuels, and bottling applications. Specifications Function3 way - 3/2 Normally Closed Valve ActuationProportional Body MaterialAluminum Frequency50/60 Hz MediaAir, Inert Gases, Natural Gas Operation EnvironmentIndoor Port TypeG ISO228/1-G BSPP, NPTF Standard & RegulationsCE, EAC, IP65 Features Comprehensive diagnostic functions include input pressure, target value, and current monitoring Industry 4.0 ready for future-proof applications Minimal power consumption (< 5 W) for low-power and remote applications Integrated web server and digital display for remote access and easy maintenance DaS HD software included for optimal valve configuration and calibration Vacuum service and pressure up to 10bar (145 psi) versions are available
