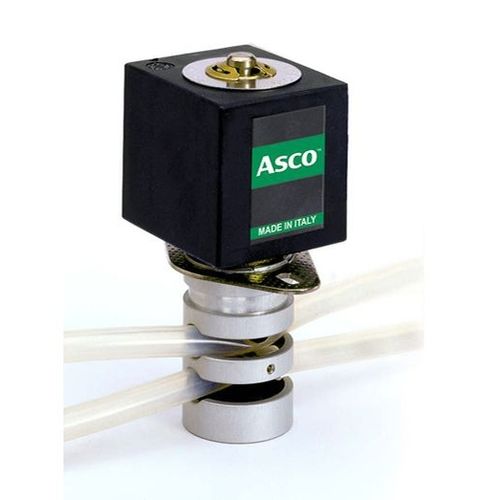

Direct-operated solenoid valve ASCO™ S307

2/3-waynormally opennormally closed

ASCO Series S307 pinch valves can control any fluids that is compatible with the tubing material, protecting the fluid from all contamination, including temperature changes. These characteristics make this valve suitable to control a wide range of fluids including those in the analytical, medical and food industry. Specifications Pinching device POM (reinforced acetal copolymer) Core tube Stainless steel Features Pinch solenoid valve, suitable to shut off media without producing neither turbulent flows, nor dead spaces. One tubing is normally closed (NC) while the other one is normally open (NO). High flow rate under the same conditions of internal diameter of different solenoid valves; the system allows a bi-directional through flow. The valves are suitable for soft SILICONE tubings or others, similar as to elasticity and hardness (50 shore A). The tubing is the only material in contact with the fluid. The tubings are not included in our supply.
