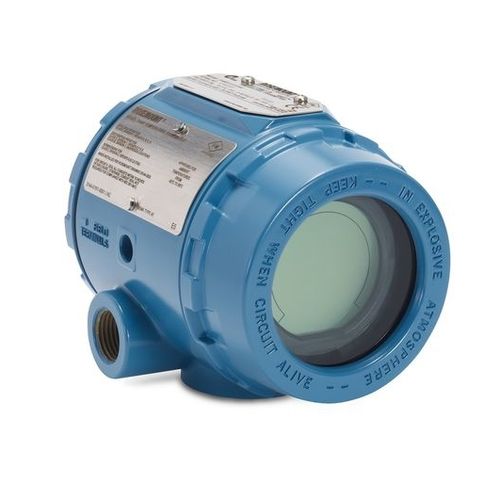

Probe head-mounted temperature transmitter 3144P

thermocoupleRTDFieldbus

The Rosemount 3144P Temperature Transmitter provides industry-leading accuracy, stability and reliability for your temperature measurements. It features a dual-compartment housing to ensure reliability and advanced diagnostics to keep your measurement point up and running. When combined with Rosemount X-well™ Technology and the Rosemount 0085 Pipe Clamp sensor, this transmitter can provide accurate measurement of process temperature, eliminating the need for a thermowell or process penetration. Specifications InputDual and single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms) Output Signal4-20 mA /HART® protocol, FOUNDATION™ Fieldbus protocol HousingDual-compartment field mount Display/InterfaceLarge LCD display with percent range graph and buttons/switches DiagnosticsBasic diagnostics, Hot Backup™ capability, sensor drift alert, thermocouple degradation, min/max tracking Calibration OptionsTransmitter-sensor matching (Callendar-Van Dusen constants), custom trim Certifications/ApprovalsSIL 2/3 certified to IEC 61508 by an independent 3rd party, hazardous location, marine type, see full specs for complete list of certifications Features Industry-leading accuracy and reliability for best performance in critical control and safety applications Transmitter-sensor matching improves measurement accuracy up to 75% 5-year long-term stability extends calibration intervals to reduce trips to the field Rosemount X-well Technology measures temperature without a process penetration for reduced design, installation and maintenance costs Dual compartment housing provides superior protection in harsh environments
