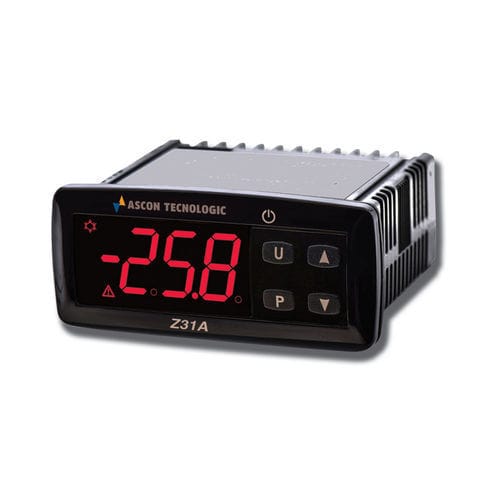

NTC thermostat Z31A
electronicrelayIP65

NTC thermostat
NTC thermostat
NTC thermostat
NTC thermostat
NTC thermostat
NTC thermostat
Add to favorites
Compare this product

Go to the ASCON TECNOLOGIC website for more information

Characteristics

Heating technology
electronic, NTC
Contact type
relay
Protection level
IP65
Other characteristics
digital, on/off
Temperature

Max.: 150 °C
(302 °F)

Min.: -50 °C
(-58 °F)

Switching power : voltage

Max.: 240 V

Min.: 100 V

Description

Thermostat, 1 input and 1 output Digital electronic thermostat equipped with ON/OFF temperature control which provides a relay output and an input for PTC or NTC temperature probes. It can be equipped with an internal buzzer for the acoustic signaling of alarms. The capacitive “Sensitive Touch” keyboard (Model Z31SA) is also available on request. FUNCTION - Thermostat DIMENSIONS - 78 x 35 mm DISPLAY - 1 display with 3 digit POWER SUPPLY - 12 Vac/Vdc, 24 Vac/Vdc, 100… 240 Vac INPUTS - NTC, PTC-NTC NUMBER OF OUTPUTS - 1 OUTPUTS - Relay INTERFACE - RS 485 with external module A30, TTL Modbus SPECIAL FUNCTIONS - Acoustic alarm (buzzer), Remote display (TVR) CONTROL - ON/OFF EXTRACTABILITY - Not extractable, With fix terminal block, With removable terminal block CERTIFICATIONS - CE, UL
